Description

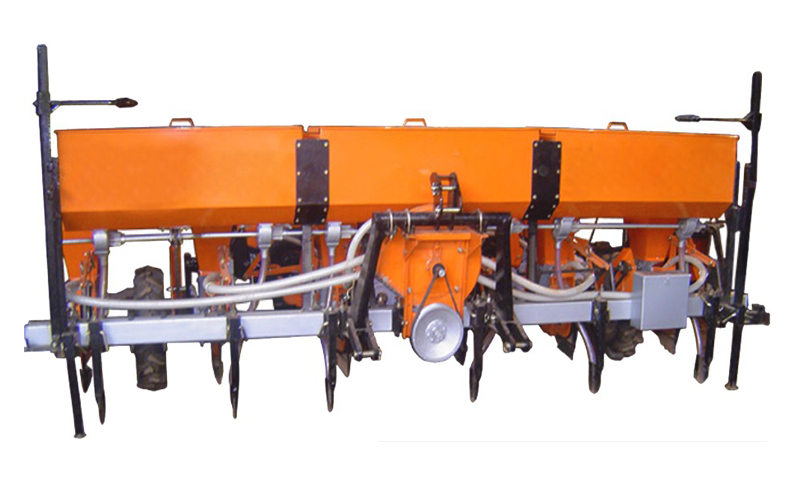

Use of sophisticated machinery is helpful to ease time and crop loss. This Planter achieve 15 — 20% more output. Pneumatic Planter along with maintenance of inter row distance also capable of keeping inter seed distance in row. Depth of sowing, Quantity of Fertilizer and proper moisturizer which plays a vital role in sowing of Maize and Sun Flower Seeds. This it saves the wastage of seeds. This Planter is useful for sowing of Maize. Sun Flower Cotton. Soybean, Chick Pea, Sorghum, Tomato, Water Mellon and other common vegetables on large scale.
- Inter seeding distance in each row can be adjusted from 10 — 25 cm.
- Inter row distance can be adjusted from 45 — 75 cm easily .
- Depth of sowing can be adjust to provide proper moisturizer to seed.
- Seeds after sowing are cover with proper soil.
- Place and depth of Fertilizer dropping can be adjust.
- Markets on both sides of Planter are helpful for straight line sowing and prevent multiple dropping of seeds.
- Pneumatic seeding mechanism is operate by PTO of the Tractor and the Plate, which drops the seeds in soil in equal quantity and regular spacing.
- Pneumatic system prevents the seeds from any breakage thus ensuring 100% utilization.
| DETAILS | STANDARD MODELS | |
| AGM/PP/4R | AGM/PP/6R | |
| Tractor Power Required | 60 HP— 85HP | 85 HP— 120 HP |
| Length (mm) | 2000 | 2000 |
| Width (mm) | 2570 | 3210 |
| Height (mm) | 1200 | 1200 |
| Weight (kg) | 580 | 700 |
| Seed Capacity (Lit) | 48 | 72 |
| Fertilizer Capacity (Lit) | 152 | 228 |
| Number of Seed Lines | 4 Lines | 6 Lines |
| Inter Row Distance (mm) | 450— 880 | 450— 880 |
| Sowing / Seeding Capacity | 2 Acres / Hr @ 5km/Hr Tractor Speed | |
| Material | Section High Carbon Alloy Steel | |
| Paint | 2 coats of desired shade of antirust paint with Zn Oxide Primer. | |
