Description
Usage:

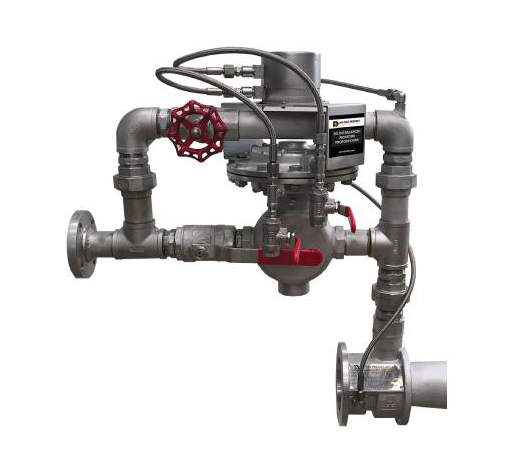

Inline Balance Pressure Foam Proportioner (ILBP) is used with positive displacement foam concentrate supply pump. The system controls accurate flow of
- foam concentrate into the water stream over a wide range of flow rate and pressure.
- ILBP is used for simultaneous operation of the multiple foam injections even with different pressures between the two injection points with a single concentrate
- supply line. Various sizes of inline balance pressure proportioners can be combined to suit the flow requirement of each hazard area. Inline Balance Pressure
- Foam Proportioner is UL Listed.
| Material | Bronze or Stainless-steel material with Stainless Steel trims 65, 80-, 100-, 150- & 200-mm size (21⁄2”, 3”, 4”, 6” & 8”) with flow ranging from 180 to 17400 lpm |
| Working pressure | 2.8 to 14 bar (40 to 200 psi) |
