Description
Product Features:

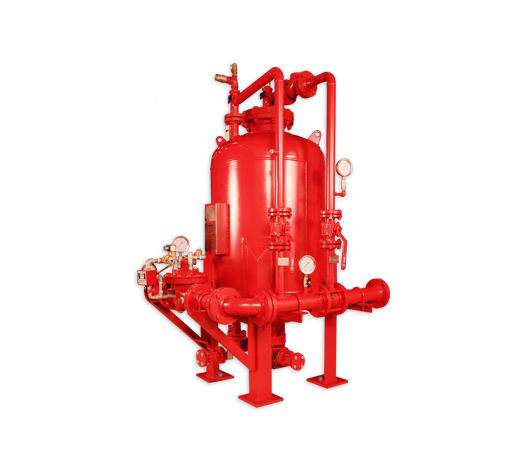

Foam Bladder Tanks offer a reliable and simpler method of foam proportioning. Bladder Tank system includes a pressure-rated tank with an internal rubber
- Upon system actuation, incoming water applies pressure to the rubber bladder, which supplies pressurized foam concentrate to the proportioning
- device (ratio controller). The foam ratio controller meters the foam concentrate into the fire water line, creating foam solution. The solution is then piped to the
- discharge devices protecting the hazard area. Bladder tanks are available in horizontal and vertical mounting with a completely pre-piped option. HD Foam
- Bladder Tanks carry UL, FM and CE Approvals. Please contact our sales for further details on approvals and certifications.
Description:
| Unit | Vertical or Horizontal |
| Maximum working pressure | 12 Bar (175 PSI) |
| Material | Carbon Steel or Stainless-Steel Construction
Tank made to ASME Code Section VIII Div. I ASME U Stamp available as an option |
| Capacity | up to 15,000 liters (4000 gal.) |
| Compatibility | Compatible with all foam concentrates
Proportioner & Deluge Valve pre-piped on to the tank UL Listed Bladder Tank, Proportioner and Deluge Valve |
