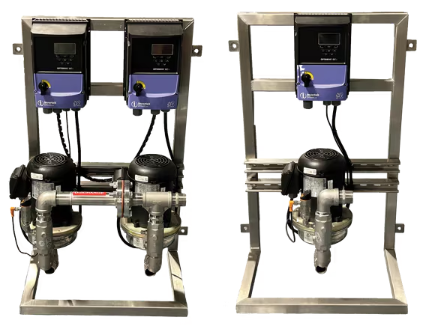

Description
Application
• Strip Malls/Restaurants
• Multi-Family Housing
• Small Office Buildings
• Truck Stops/Car Washes
Equipment/function
• Plug & Play Ready Solution requiring minimal engineering
• Highly compact, 1 or 2 pump booster for low flow- low boost applications.
• 304 Stainless Steel pumps & fittings
• Voltages: 230/1, 208/3, 460/3, 575/3
• Variable Frequency Drives & Master Power Switch included standard
• IP66 Rated VFDs & TEFC Motors for indoor/outdoor locations
• Multi-functional Digital Pressure Sensor with pipe break feature
• Non-Slam (Silent) Operation resilient seated check valve
• Compact Front-Side Access accommodates wall or floor anchoring
• Simplex & Duplex Vertical Mounted Pumps for easy seal maintenance
• Simple System Connections: 1.25” NPT
• 1 Year Warranty
Typekey
| Example: | MicroFlo Duplex 1.5-5.00-460V~3 |
| MicroFlo | Series |
| Duplex | Number of Pumps (2) |
| 1.5 | Horsepower |
| 5.00 | Impeller Trim(in.) |
| 460V | Voltage |
| ~3 | Number of Phases |
