Description
Design

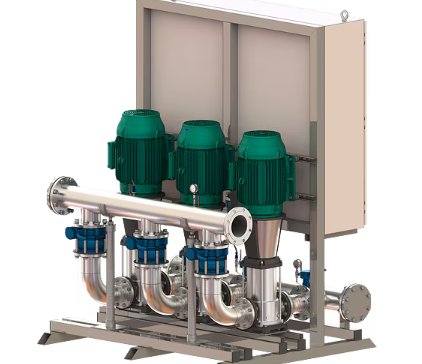

2-4 Pump Pressure-Boosting Systems
Application
For use in water supply applications requiring constant pressure, such as:
• Water Supply
• Pressure Boosting
• Agriculture
• Washing / Sprinkling Systems
• Cooling Circuits
• Condensate Return
Max. Flow: 3,160 GPM
Max. Head: 989 feet
Typekey
| Example: | Wilo CO2 MVI-1SB-225-3/2-20HP-304E-230V~3 |
| Wilo | Brand Name |
| CO | Product Family: Pressure Booster Systems (1 VFD Per Pump) |
| 2 | Number of Pumps |
| MVI | Series designation of pumps |
| 1SB | Reduced Manifold (1 Standby Pump Required) |
| 225 | Nominal Flow Rate in US Gallons per Minute |
| -3 | Number of Stages (Impellers in Series) |
| /2 | Number of Trimmed Impellers |
| 20HP | Horsepower |
| 304 | Stainless Steel Type |
| E | EPDM Elastomers |
| 230V | Voltage |
| ~3 | Phase |
