Description
TYPE DESIGNATION

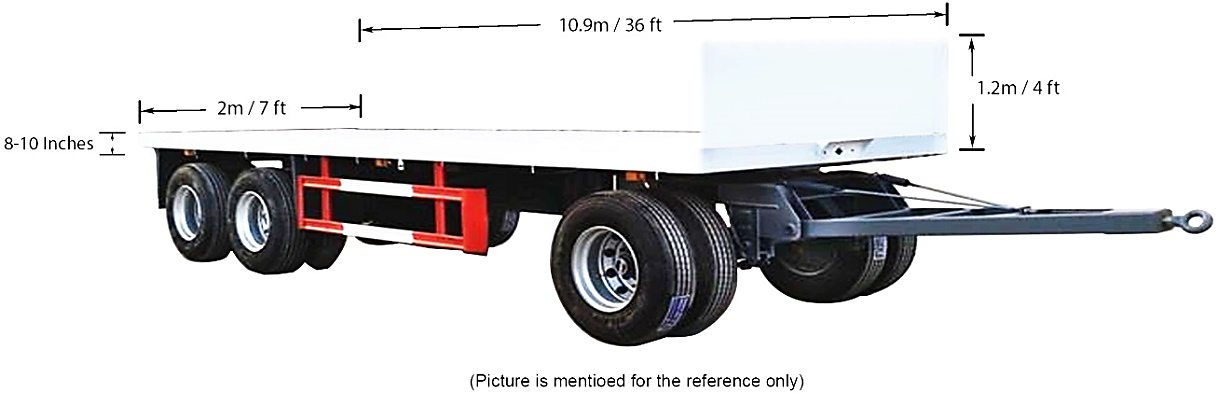

3-AXLE STANCHION PLATFORM TRAILER
Lightweight frame made from special high-strength steel.
Steel stud plate floor, 5/7 mm, tack-welded.
Installation of axles from well-known manufacturers.
OPTIONAL: Installation of Extensions 1.5 ft on each side
OPTIONAL: Heavy-duty band winch with 10 m belt incl. triangle and clamp OPTIONAL: Mudguard easily removable
OPTIONAL: Side Support Pillars
OPTIONAL: Floor Extra Channels
OPTIONAL: Rear Lights
OPTIONAL: Mudguards with spray protection
OPTIONAL: Wheel Chocks
FRAME
Welded steel frame construction
Reinforced external lashing frame
Low-maintenance ball bearing turntable
11 pairs of recessed lashing points
Reflective contour marking strips across entire length of sides and on the rear
DRAWGEAR
Fixed drawbar, 40 mm
| SPECIFICATIONS | AGM/T/36T |
| Size:
Overall Vessel Length Overall Vessel Width Overall Sides Height |
10.9m / 36ft 2m / 7ft 1.2m / 4ft |
| Bed Sheet Gauge: | SWG 10 |
| Side Sheet Gauge: | SWG 10 |
| Axle Size with Hub: | 5″ x 8mm |
| Cross (Floor) Channel Size: | 5 Inches |
| Main Channel Size: | 12 Inches |
| Tyre Size: | 1100-20 / 1000-20 |
| Total Number of Wheel Rims: | 12 |
| Number of Axle: | 03 with Front has Turntable 360 Degree |
| Weight (Without Load): | 2500 KG |
| Loading Capacity: | 36 Ton |
| Tractor Compatibility: | 88hp — 120hp |
| Paint: | 2 coats of desired shade of antirust paint with Zn Oxide Primer Paint. |
| Accessories: | Tool Box |
