Description

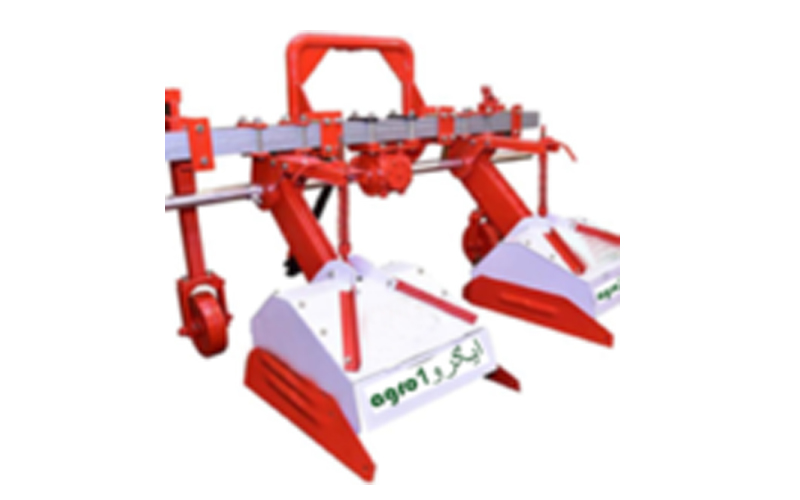

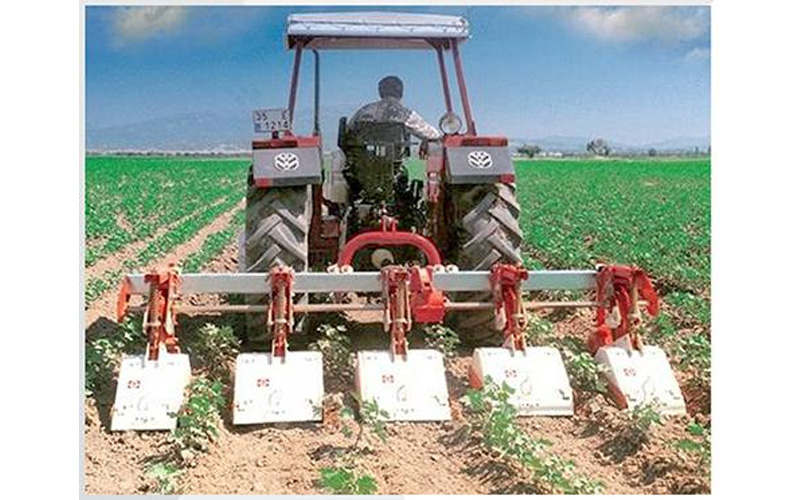

Rhodes grass is a perennial or annual tropical grass. It is a leafy grass, 1-2 m in height, highly variable in habit.The culms are tufted or creeping, erect or decumbent, sometimes rooting from the nodes. Inter Row Rotary Tiller is a tractor operated implement which is similar to rotator but it covers only in between crop rows and it is specially designed for mulching of crop residue into the soil. Rotor assemble is easily detachable as per crop row spacing.
| DETAILS | MODELS | |||
| AGM/IRM-2 | AGM/IRM-4 | AGM/IRM-5 | AGM/IRM-6 | |
| Power Requirements | 40 — 60 HP | 75 — 90 HP | 90 — 110 HP | 90 — 110 HP |
| Number of Rows | 2 | 4 | 5 | 6 |
| Capacity | 5-6 Acre per day |
6-7 Acre per day |
7-8 Acre per day |
7-8 Acre per day |
| Inter-row Distance Range, adjustable as per crop row spacing | 450 mm — 760 mm (Approx.) |
|||
| No. of Tines in each spade | 16 | |||
| Gear Box | Single Stage | |||
| Gear Box Oil | SAE 140 | |||
| Drive Transmission | Hexagonal Shaft | |||
| Rotor Diameter | 480mm | |||
| Rotor Speed | 218 RPM | |||
| PTO Speed | 540 RPM and Required Standard Six Splines input shaft | |||
