Description
SIMPLE AND BEST!

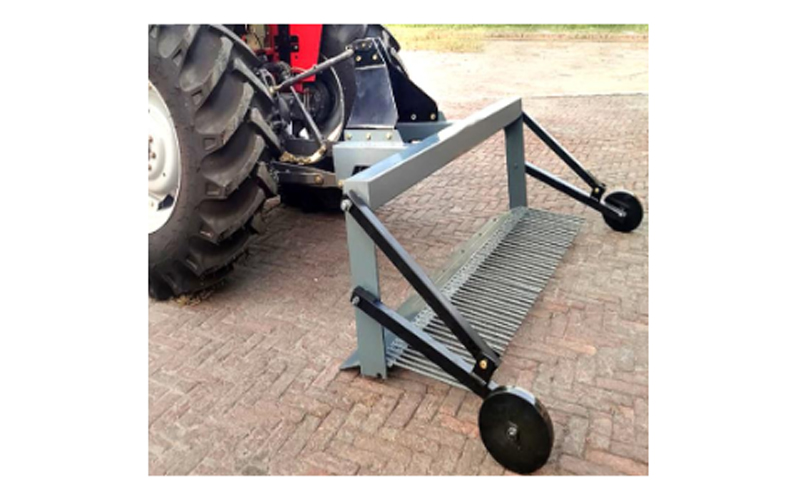

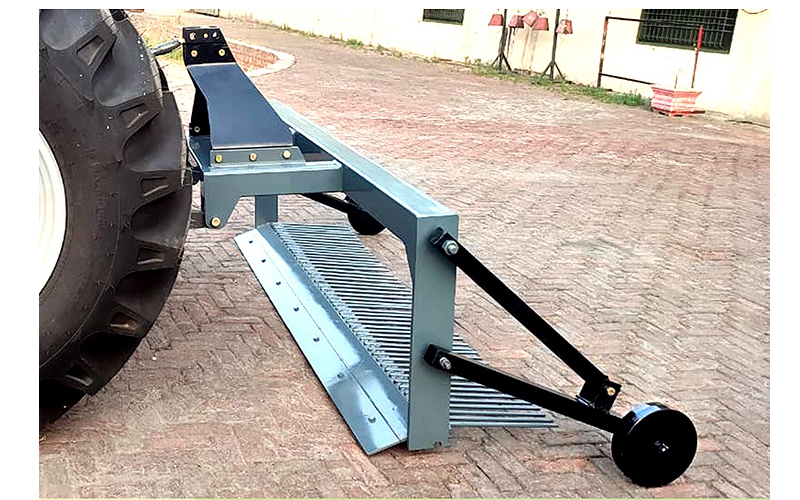

Agro1’s Groundnut / Peanut Digger implement designed for efficient harvesting of ground nuts(peanuts).
Easy to operate and effectively can be used in sandy and/or loose soils. It is not much effective in hard and clayey soils. It is used to dig up the plants from the soil, shake off the dirt, and lay the plants in a windrow for drying and further processing.
FEATURES:
- It is a simple machine, consisting of main frame, horizontal blade and two depth control steel wheels at rear.
- It is a tractor mounted machine at 3 Point Linkage at rear side.
- Draft is used to pull it through the soil during field operation.
- Digging depth is controlled with two depth wheels by tractor hydraulic system.
- This has an effective field capacity of machine is 0.70 acres per hour.
- Power requirement is 35 to 45 Kilowatts tractor.
- Iron Made Strong Wheels on both sides for keeping the balance.
| MODEL: | AGM/GD/1.5 AGM/GD/2.5 AGM/GD/3.0 |
| Overall Length: | 1.5 meter 2.5 meter 3.0 meter |
| Overall Width: | 1.2 – 1.5 meters |
| Overall Height: | 1.0 – 1.2 meters |
| Weight: | 300 – 500 kg |
| Digging Width Capacity: | 1.0 – 1.2 meters |
| Digging Depth Capacity: | Adjustable, 10- 30 cm |
| Field Capacity: | 0.5 – 1.0 hectares per hour |
| Tractor Power: | Tractor Power: 35 – 60 HP |
| PTO Speed: | PTO Speed: 540 RPM |
| Number of Blades: | 1 with full length |
| Blade Type: | Serrated edges for efficient cutting |
| Blade Material: | Metal Tires |
| Blade Diameter: | 17 cm |
| Blade Width: | 5 cm |
| Digging Mechanism: | Type: Blade or share type
Adjustment: Manual Depth Adjustment |
| Shaking Mechanism | Type: Vibratory Frequency: Fixed |
| Material: | High-strength steel |
| Coating: | Anti-rust and corrosion-resistant paint |
