Description

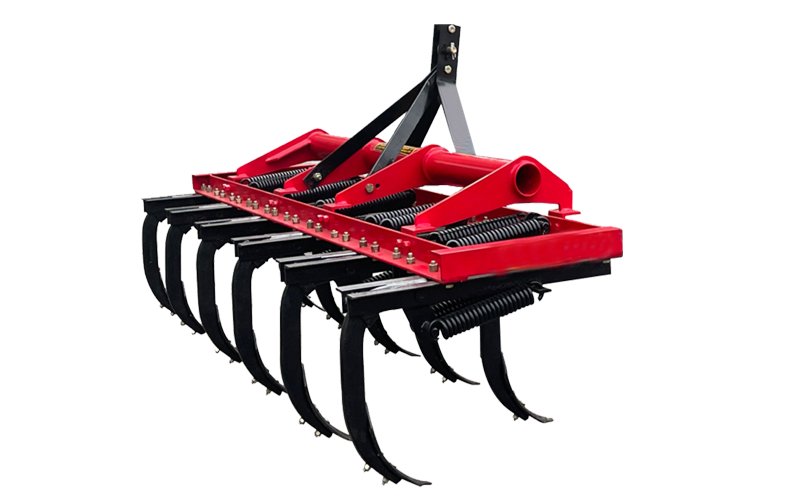

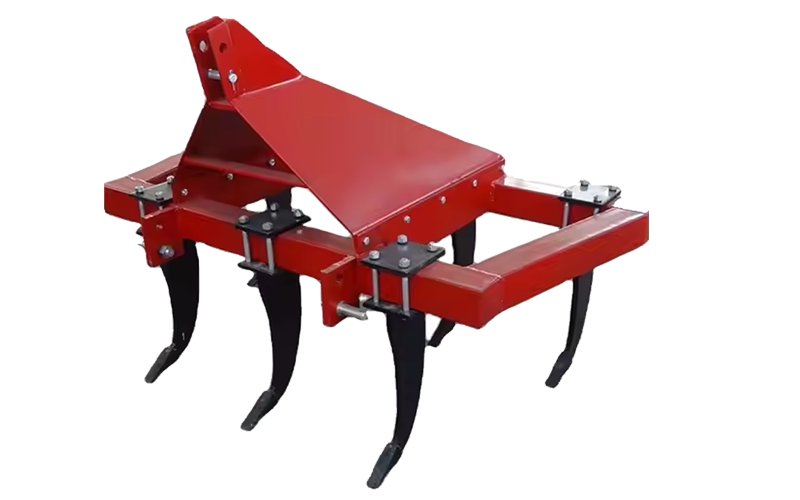

| · Agro1 Spring Tine Cultivator is Made from high-strength steel, in different frames, with and without springs.
· Springs are designed to withstand heavy use and harsh field conditions, providing consistent and effective soil cultivation. · Precision-crafted Tines with a curved or angled design, allowing for maximum soil penetration and disturbance, while minimizing soil compaction. · Tine spacing can be adjusted to suit various soil types, crop requirements, and field conditions, ensuring optimal performance. · Simple design and few moving parts reduce maintenance requirements, minimizing downtime and repair costs. · This Spring Tine Cultivators can be attached to a variety of tractors and other agricultural equipment, making them a versatile and valuable addition to any farm or ranch.
|
· Frame is built with sturdy steel construction, providing strength and durability for demanding field conditions, and effectively controls weeds by uprooting and aerating the soil, reducing the need for herbicides and other chemicals.
· A manual width control adjustments, allowing the operator to adjust the working width to suit various field conditions, Easy transition between different crops or soil types, Reduced soil compaction and improved soil coverage and Increased efficiency and productivity · The depth control system allows for easy adjustment of tine depth, ensuring optimal soil penetration and cultivation.
|
More models can be manufactured on request. Shapes available;
1) Round Steel Torsion Tube 2) Taggle Form, and Fixed Steel Form.
| DETAILS | MODELS | ||
| AGM/TT/9 | AGM/TT/11 | AGM/TT/13 | |
| No. of Tines | 9 | 11 | 13 |
| Linkage Category | CAT III Point Linkage | ||
| Frame | Round Steel or Fixed Tubes | ||
| Overall Width | 2180 mm | 2900 | 3430 mm |
| Overall Length | 813 mm | 813 mm | 813 mm |
| Overall Height | 1.02 m | 1.02 m | 1.02 m |
| Tine Spacing | 178mm/ 229mm | 229 mm / 254mrn | 229 mm |
| Cultivating Width | 1880 mm | 2590 mm | 2790 mm |
| Max. Working Depth | 229 mm | 229 mm | 229 mm |
| Weight | 209 Kg | 236 Kg | 268 Kg |
| Max. Jump Load Setting | 136— 159 Kg | 135— 159 Kg | 136— 159 Kg |
| Types of Tines | Spring loaded —51 mm, reversible pointed shovel tips | ||
| Tractor Compatibility | 30 – 50 Hp | 40 – 75 Hp | 75 – 100 Hp |
