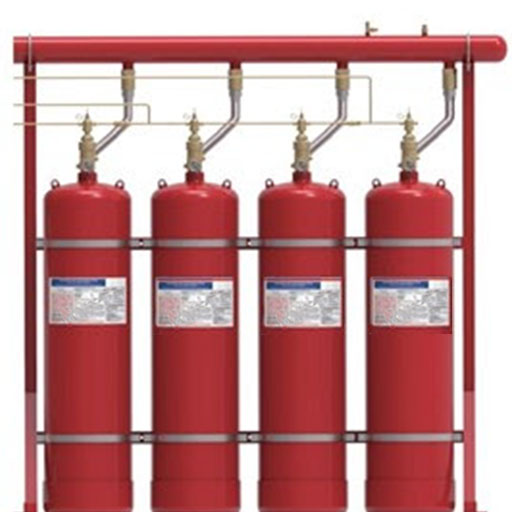

90L Pipe Network Fire Suppression Gas System

Description:

  • Low concentration of HFC
  • 227ea required means less visual obscurity and minimal risk to personnel.
  • Small quantity of agent discharged minimizes over pressurization of the protection area.
  • Max Safety for personnel due to low toxicity.
  • High effective with 10 second discharge time when used with automatic detection.
  • Prevent re-ignition as long as concentration levels are maintained.
  • Computer Rooms 2) Data Processing Centers 3) Telecommunications and Communication Facilities 4) Process Control Centers 5) Expensive Medical Facilities 6) Valuable Industrial Equipment 7) Museums 8) Art Galleries 9) Libraries















Category

Description

Product Specification of FM200

SYSTEM DATA
Model QMQ4.2/90N-JM QMQ4.2/120N-JM QMQ4.2/150N-JM
Cylinder Capacity 90L 120L 150L
Cabinet Size(cm) 90×50× 145 90×50× 160 90×50× 190
Max. W. P 5.3Mpa
Storage Pressure 4.2Mpa
Working Temperature 0~50°C (System room)
Operating Voltage AC 220 V
Back-Up Power DC 24 V
Discharging Time ≤10 S
System Startup Method Automatic / Manual / Emergency operationOperation
